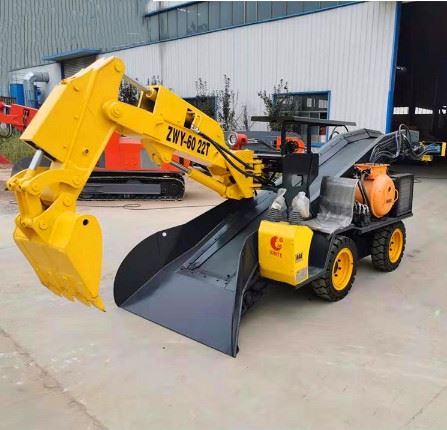

Mucking Wheel Loader
mucking wheel loader
STB-60TS tire conveyor belt type slag machine is a high efficiency continuous production mining equipment. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is suitable for roadways with a section above 1.8×1.8 meters.
This machine adopts electric full hydraulic transmission, including hydraulic walking、excavation collection、transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. It can be installed in full section without leaving dead corners and without manual auxiliary cleaning. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.
| TYPE | STB-60TS | STB-80TS |
| WEIGHT(T) | 5.8 | 7.2 |
| DIMENSION(L*W*H) | 5600*1650*1700 | 6000*1700*1800 |
| LOADING CAPACITY(M3/H) | 60 | 80 |
| MIN.TURNING RADIUS(MM) | 4600 | 5000 |
| GRADIENT(°) | ≤10 | ≤10 |
| TRAVELING SPEED(M/MIN) | 2-4.5 | 2-4.5 |
| GROUND CLEARANCE(MM) | 200 | 260 |
| NOMINAL WORKING PRESSURE(MPA) | 20 | 20 |
| MOTOR POWER(KW) | 18.5/22 | 22/30 |
| MAX.MATERIALS SIZE(L*W*H) | 810*580*420 | 810*580*500 |
| APPLICABLE SECTION(W*H)M | 1.8*1.8 | 2.2*2.2 |
