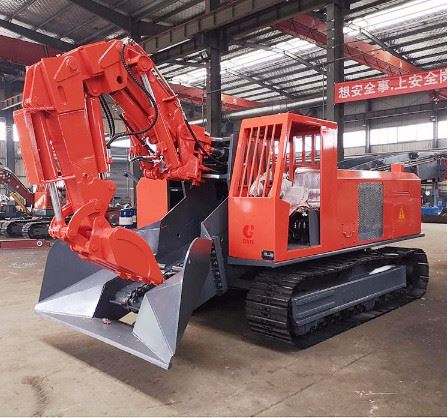

Attachment Mucking Loader

Attachment Mucking Loader

This machine has a large capture force and strong loading capacity, and adopts a sealed and lubricated crawler belt. The tensioning crawler device is convenient to adjust and has a long service life, and the special tooth for the excavator is durable and interchangeable. The conveyor can unload the rock from the tail into dump trucks, shuttle mine cars, side dump trucks, belt conveyors, buckets and other loading equipment. The main action is controlled by pilot valve, which is easy and convenient to operate, safe and comfortable, driving flexible, with strong climbing ability, stable and no impact. It can be equipped with hydraulic breakers to crush and repair the roadway floor and side sills, blasting large rocks and coal mines, etc. The working arm can be used to realize the face danger, the whole section is installed with rock, no dead corner left and no need manually assisted for the working face.
Send Inquiry
Product Introduction

attachment mucking loader


The machine relies on the crawler to walk, the driving force is large, the extraction range is wide, the whole section is loaded with rock, no dead corner is left and no need manual auxiliary cleaning for the working surface.


This machine has a large capture force and strong loading capacity, and adopts a sealed and lubricated crawler belt. The tensioning crawler device is convenient to adjust and has a long service life, and the special tooth for the excavator is durable and interchangeable. The conveyor can unload the rock from the tail into dump trucks, shuttle mine cars, side dump trucks, belt conveyors, buckets and other loading equipment. The main action is controlled by pilot valve, which is easy and convenient to operate, safe and comfortable, driving flexible, with strong climbing ability, stable and no impact. It can be equipped with hydraulic breakers to crush and repair the roadway floor and side sills, blasting large rocks and coal mines, etc. The working arm can be used to realize the face danger, the whole section is installed with rock, no dead corner left and no need manually assisted for the working face.


TYPESTB-80STB-100
WEIGHT(T)8.2/10.610.8/11.5
DIMENSION(L*W*H)6100*1700*18006800*1800*1900
LOADING CAPACITY(M3/H)80100
MIN.TURNING RADIUS(MM)55007000
GROUND CLEARANCE(MM)230330
NOMINAL WORKING PRESSURE(MPA)2525
TRAVELING SPEED(M/MIN)2.1/3.82.1/3.8
MOTOR POWER(KW)30/3745
MAX.MATERIALS SIZE(L*W*H)650*700*650670*700*660
APPLIED TUNNEL GRADIENT(°)≤18≤18
APPLICABLE SECTION(W*H)M≥2.2*2.2/2.6*2.6≥2.3*2.3/3*3
THE INSIDE TRACK WIDTH(MM)10001130
TRANSPORT FORM OF SCRAPERDOUBLE CHAIN DOUBLE DRIVE    /SINGLE CHAIN SINGLE DRIVEDOUBLE CHAIN DOUBLE DRIVE    /SINGLE CHAIN SINGLE DRIVE
GRADIENT(°)≤25≤25






mie tunnel oader mini mucking rock loader mining diesel mucking loadeElectric Power Wheel Mucking Tunnel Loader machine coal rmucking loader for m
