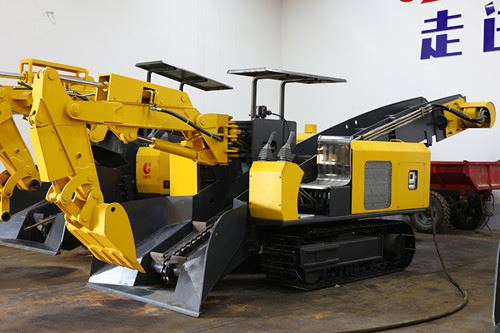

Mining Mucking Loader
mining mucking loader
This machine is mainly used for loading operations of coal mines and non-coal mine roadways. The equipment is suitable for use in narrow and steep slope roadways of ≤30°. This machine adopts imported hydraulic pilot control lever system, combined with high-efficiency hydraulic valve to accelerate the boom, stick speed and conveying speed to achieve perfect composite operation performance and ensure the best performance under various harsh conditions. The machine is light in work, accurate in positioning, wide in extraction range, fast in conveying speed, has characters as safe, environmentally friendly, high efficiency and super energy-saving. It is fully ergonomically designed and can adapt to various complicated working conditions. Its performance and structure rank first among similar products in the country, and it is comparable to imported products, filling the blank of no mechanical mining in small and medium-sized large-scale mines.
| TYPE | STB-80D | STB-100D |
| WEIGHT(T) | 8.8/10.8 | 10.8/15.8 |
| DIMENSION(L*W*H) | 6100*1800*1800 | 7100*1800*2200 |
| LOADING CAPACITY(M3/H) | 80 | 100 |
| TRAVELING SPEED(M/MIN) | 2.1/3.8 | 2.1/3.8 |
| GROUND CLEARANCE(MM) | 280 | 320 |
| NOMINAL WORKING PRESSURE(MPA) | 25/35.5 | 25/35.5 |
| GRADIENT(°) | ≤32 | ≤32 |
| MOTOR POWER(KW) | 30/37 | 37/45 |
| MAX.MATERIALS SIZE(L*W*H) | 650*680*650 | 650*700*680 |
| APPLIED TUNNEL GRADIENT(°) | ≤30 | ≤30 |
| APPLICABLE SECTION(W*H)M | ≥2.3*2.3 | ≥2.4*2.5 |
| THE INSIDE TRACK WIDTH(MM) | 1000 | 1215 |
| TRANSPORT FORM OF SCRAPER | DOUBLE CHAIN DOUBLE DRIVE /SINGLE CHAIN SINGLE DRIVE | DOUBLE CHAIN DOUBLE DRIVE /SINGLE CHAIN SINGLE DRIVE |
