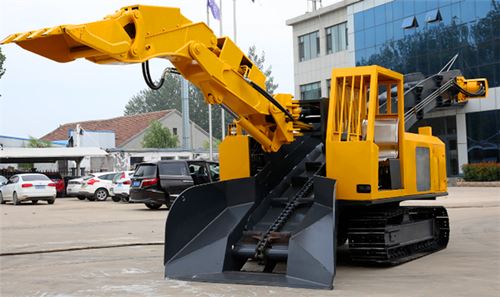

Muck Shovel Loader
muck shovel loader
The machine relies on the crawler to walk, large driving force, wide extraction range, the whole section is loaded with rock, no dead corner and no need manually assisted for the working face, and the work of draining and digging trenches can be completed quickly. This machine adopts imported hydraulic pilot control lever system, which is light in control, strong in proportional control and high in reliability. The power of this machine can be matched with diesel and electric and can be equipped with a variety of accessories.
| TYPE | STB-120 | STB-150 |
| WEIGHT(T) | 14.8*16.8 | 15.8 |
| DIMENSION(L*W*H) | 6500*2000*2300 | 7950*2140*2400 |
| LOADING CAPACITY(M3/H) | 120 | 150 |
| GROUND CLEARANCE(MM) | 270 | 380/480 |
| NOMINAL WORKING PRESSURE(MPA) | 25/35 | 25/35 |
| TRAVELING SPEED(M/MIN) | 2.15/3.8 | 2.15/3.8 |
| MOTOR POWER(KW) | 45/55 | 55/79 |
| MAX.MATERIALS SIZE(L*W*H) | 800*780*700 | 830/800*750 |
| APPLIED TUNNEL GRADIENT(°) | ≤18 | ≤18 |
| APPLICABLE SECTION(W*H)M | ≥3.0*3.0 | ≥3.5*3.5 |
| THE INSIDE TRACK WIDTH(MM) | 1100 | 1210 |
| TRANSPORT FORM OF SCRAPER | DOUBLE CHAIN DOUBLE DRIVE /SINGLE CHAIN SINGLE DRIVE | DOUBLE CHAIN DOUBLE DRIVE /SINGLE CHAIN SINGLE DRIVE |
| GRADIENT(°) | ≤25 | ≤25 |
