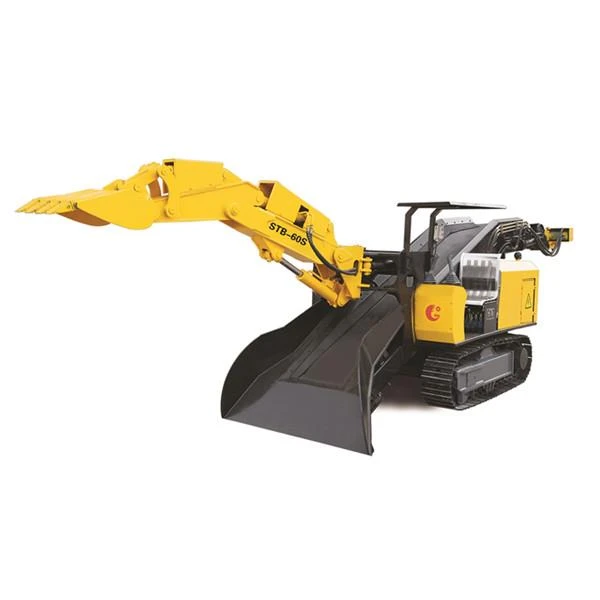

Rock Mucking Crawler Loader

Rock Mucking Crawler Loader is suitable for construction machinery in tunnel excavation, mining engineering, water conservancy engineering and other projects, as well as small-section diversion tunnels, mine slag (mining) machinery. Rock Mucking Crawler Loader is mainly used for some production operations with narrow and small-scale phosphate mines and metals. Collection, transportation and loading of gravel and soil materials in non-explosive dangerous mines such as non-metallic mines.

Send Inquiry

Product Introduction

Product Description

1. The Rock Mucking Crawler Loader is suitable for thin seam coal mining which is the first excavation equipment for coal mine, hard rock in non-coal mine and big slope inclined roadway construction.

2. Rock Mucking Crawler Loader is configured with high pressure spraying device, which has function of explosion proof and dedusting n order to make sure the safe working environment.
3. Compact structure which is made of premium alloy steel, the Rock Mucking Crawler Loader has good treatment which has smooth surface with no burrs, providing the comfortable using experience.

4. Rock mucking loader perfectly integrates functions of excavator, loader and bulldozer together. Hence, the motor rotation frequency of this excavator is decreased. It does not need to perform needless actions, such as moving back and forward, so as to save power.
5. Our innovated rock excavation equipment also solves high oil temperature of hydraulic system caused by long time operating. This improvement prolongs service life of hydraulic component as well as enhances equipment reliability.

6. In accordance with the principle of environmental protection, it produces no harmful substances that it is eco-friendly, making the nature beautiful.

Technical Data
Excavating Width(mm)	4200
Excavating Length(mm)	1600
Excavating Height(mm)	1800-2700
Excavating Depth(mm)	450
Unloading Height(mm)	1200(changeable)
Minimum Loading Height(mm)	1300-1600(changeable)
Unloading Distance(mm)	1600(changeable)
Maximum Rotation Angle(°)	±50
Weight(T)	6.5
Dimension	5000x1650x1750
Loading Capacity(m³/hour)	60
Min Turning Radius(mm)	5500
Climbing Ability(°)	≦20(hard ground)
Travelling Speed(m/min)	2-4.5
Motor Power(kw)	22
Maximum Material By Size(LxWxH) (mm)	680x580x500
Ground Clearance(mm)	200
Applied Working Section(W*H) (m)	≥2.0x2.0
Nominal Working Pressure(Mpa)	20
Applied Tunnel Gradient(°)	≤15
