Muck Loader Maintenance

The muck machine should be cleaned up each time after loading. It’s better to grease the scraper chain with the used oil (the replaced hydraulic oil is ok). This can greatly extend the longevity of the chain.

The wear off bucket teeth could be replaced by knocking the elastic pin out. If the position where the bucket teeth is mounted on wear off, welding a new one with welding rod 506 or 507. Before doing this, using gas cutting method cut the abraded one and then polish the old welding joint. Direct current is preferred.

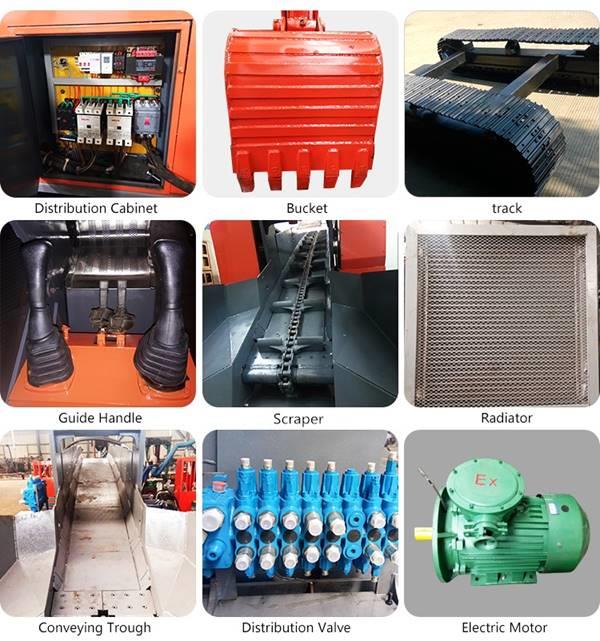

Chassis:

1,The traveling motor is designed in the front to reduce the load to tensioning device from the guide wheel when equipment climbing slope

2,The crawler is consist of high single teeth with strong traction, increasing the friction against the ground to ensure the climbing ability and walking stability of the equipment
3,According to different tunnel conditions the inner width of crawler can be widened and the ground clearance can be heightened
4,The body frme is box frame structure with good rigidity and tensional strength. It is divided into tow parts and connected with high strength bolts, which solves the problem of transportation in tunnel because of large volume


Optional

Our service:

* Sales manager cell number is 24hours available.
* Payment terms is flexible.
* Design the product according to your technical request.
* Our engineer is willing to help fixing the crane for you.
* Diversity products.
* Delivery on time.
* Warranty: 12 months.




Model ZWY-120/55L Crawler Mucking Loader Technical Data

Excavating Width(mm)

5300

Excavating Length(mm)

2200

Excavating Height(mm)

3300

Excavating Depth(mm)

700

Unloading Height(mm)

1913(changeable)

Minimum Loading Height(mm)

1680(Changeable)

Unloading Distance(mm)

2000(changeable)

Maximum Rotation Angle(°)

±50

Weight(T)

14.8

Dimension(mm)

6500x2000x2300

Loading Capacity(m³/hour)

120

Min Turning Radius(mm)

5700

Climbing Ability(°)

≤25(hard ground)

Travelling Speed(m/min)

2-3.8

Applied Tunnel Gradient(°)

≤18

Motor Power(kw)

45

Maximum Material By Size(LxWxH) (mm)

800x780x700

Ground Clearance(mm)

270

Applied Working Section(W*H) (m)

≥3x3

Nominal Working Pressure(Mpa)

25
