Hydropower Project Mucking Loader

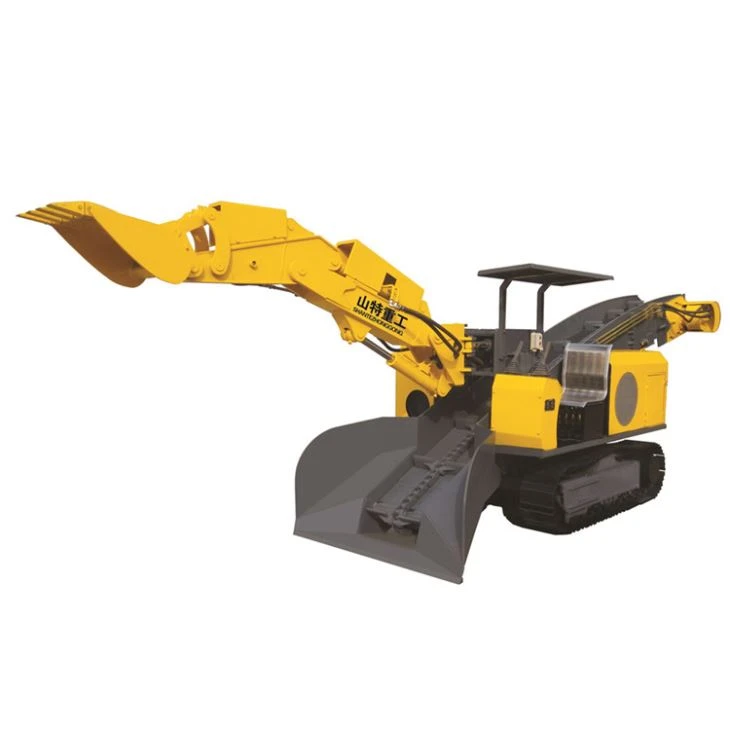

Tunnel Muck Loading Equipment

Tunnel Muck Loading Equipment

In order to improve the working efficiency, it adopts the large capacity that it is capable of conveying a large amount of materials for one time, contributing to save time, energy and money.
Sturdy frame which is made of superior alloy steel, it is strong enough to bear the whole weight in order to support the stable and efficient operation. And it is easy to maintain and clean with the resistance to corrosion, dust and water....

Send Inquiry Chat Now

Product Description

-The Tunnel Muck Loading Equipment is the newest product which adopts the electric full-hydraulic drive system. It is versatile that it can not only collect the materials, but also convey and dump the materials with fast speed.

-In order to improve the working efficiency, it adopts the large capacity that it is capable of conveying a large amount of materials for one time, contributing to save time, energy and money.

-Sturdy frame which is made of superior alloy steel, it is strong enough to bear the whole weight in order to support the stable and efficient operation. And it is easy to maintain and clean with the resistance to corrosion, dust and water.

-Due to its high efficiency, reasonable price as well as durable life span, it is widely used for mining of coal mine, metal mine, non-metal mine and tunnel digging of hydropower project.

-Manufactured with strict process, the Tunnel Muck Loading Equipment has guaranteed quality which also has elegant appearance owing to the good treatment by experienced workers with exquisite craftsmanship.

Technical Data

Excavating Width(mm)

3870

Excavating Length(mm)

1530

Excavating Height(mm)

2300

Excavating Depth(mm)

450

Unloading Height(mm)

1400

Unloading Distance(mm)

1600

Maximum Rotation Angle(°)

±50

Weight(T)

7.5

Dimension(mm)

5000x1490x1650

Loading Capacity(m³/hour)

60

Min Turning Radius(mm)

4000

Climbing Ability(°)

≦20(hard ground)

Motor Power(kw)

22

Ground Clearance(mm)

260

Applied Working Section(W*H) (m)

≥2.0x2.0

Nominal Working Pressure(Mpa)

20
