Mucking Loader
mucking loader

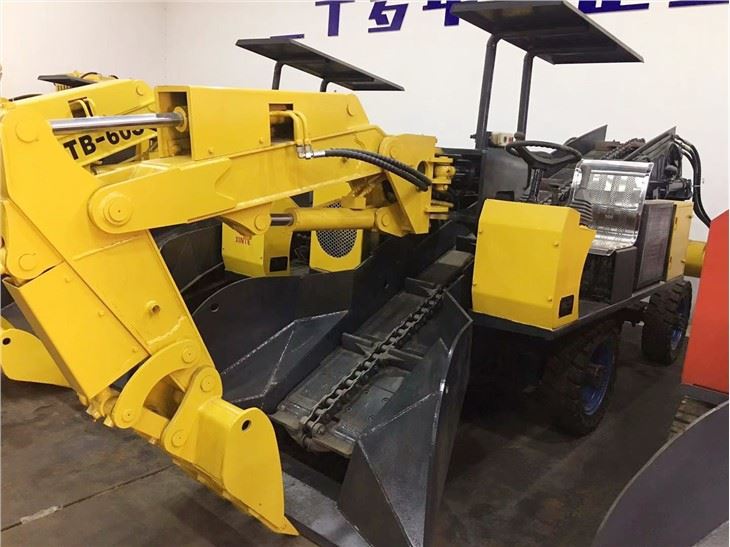

This machine is a four-wheel drive, with large driving force, wide extraction range, full-section loading rock, no dead corners, no need manual auxiliary cleaning. This machine is a chain conveyor material, completely replacing the belt to conveying material, and using life increased more than 30 times. This machine adopts module production to facilitate downhole installation work, small body, compact structure, low gravity center, flexible maneuverability and stable work. It is an irreplaceable model of narrow section.
| Tire scraper type slag machine | ||
| TYPE | STB-60L | STB-100L |
| WEIGHT(T) | 6.2 | 8.6 |
| DIMENSION(L*W*H) | 5800*1650*1700 | 5800*1700*1650 |
| LOADING CAPACITY(M3/H) | 60 | 100 |
| MIN.TURNING RADIUS(MM) | 4500 | 4500 |
| GROUND CLEARANCE(MM) | 200 | 210 |
| NOMINAL WORKING PRESSURE(MPA) | 16/25 | 16/25 |
| TRAVELING SPEED(M/MIN) | 2-4.5 | 2-4.5 |
| GRADIENT(°) | ≤15 | ≤15 |
| MAX.MATERIALS SIZE(L*W*H) | 810*580*500 | 810*580*500 |
| APPLIED TUNNEL GRADIENT(°) | ≤10 | ≤13 |
| APPLICABLE SECTION(W*H)M | ≥2.0*2.0 | ≥2.2*2.2 |
| MOTOR POWER(KW) | 18.5/22 | 22/30 |
