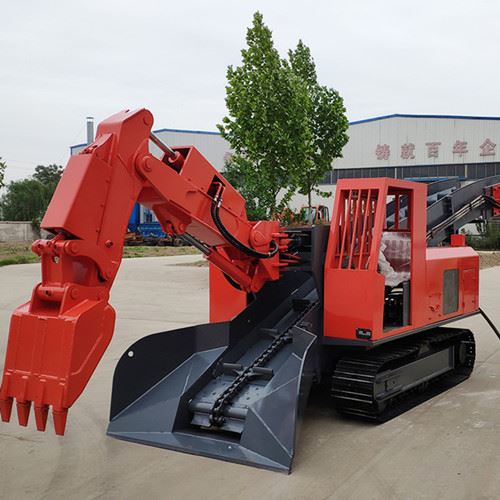

Crawler Mining Muck Loader

Crawler Mining Muck Loader

STB-220 crawler type slag machine is a kind of high-efficiency armored equipment for continuous production. It is mainly used in the excavation loading operation for mine main roadways, railway tunnels, water diversion loops, national defense projects and other rare ore blocks. loading operations can also be used to load bulk materials in open air operations. This machine is by crawler walking, with large driving force, wide extraction range, full-section loading rock, no dead corner, no need manually assisted for the working face, and can quickly complete the work of draining and sulking. The overall design of the machine combines the advanced technology of Germany and Japan, equipped with a complete fault detection system and circuit protection system. The management connection adopts the internationally top oil port double 7seal form, which improves the reliability of the oil circuit system. The assembly of the humanized pilot operating system greatly reduces the labor intensity of the workers. It is safe, easy, comfortable and can adapt to various complicated working conditions when operating the machine. The performance structure ranks first in the national products.
Send Inquiry
Product Introduction

crawler mining muck loader


STB-220 crawler type slag machine is a kind of high-efficiency armored equipment for continuous production. It is mainly used in the excavation loading operation for mine main roadways, railway tunnels, water diversion loops, national defense projects and other rare ore blocks. loading operations can also be used to load bulk materials in open air operations. This machine is by crawler walking, with large driving force, wide extraction range, full-section loading rock, no dead corner, no need manually assisted for the working face, and can quickly complete the work of draining and sulking. The overall design of the machine combines the advanced technology of Germany and Japan, equipped with a complete fault detection system and circuit protection system. The management connection adopts the internationally top oil port double 7seal form, which improves the reliability of the oil circuit system. The assembly of the humanized pilot operating system greatly reduces the labor intensity of the workers. It is safe, easy, comfortable and can adapt to various complicated working conditions when operating the machine. The performance structure ranks first in the national products.

TYPESTB-180STB-220
WEIGHT(T)18.621.6
DIMENSION(L*W*H)13088*2350*260014900*2450*2600
LOADING CAPACITY(M3/H)180220
GROUND CLEARANCE(MM)≤380≤420
NOMINAL WORKING PRESSURE(MPA)≤32≤32
TRAVELING SPEED(M/MIN)0.54±5%0.6±5%
MOTOR POWER(KW)5579
MAX.MATERIALS SIZE(L*W*H)800*780*800830*820*990
APPLIED TUNNEL GRADIENT(°)≤20≤20
APPLICABLE SECTION(W*H)M≥3.8*3.8≥4*4
THE INSIDE TRACK WIDTH(MM)13501400
TRANSPORT FORM OF SCRAPERDOUBLE CHAIN DOUBLE DRIVE    /SINGLE CHAIN SINGLE DRIVEDOUBLE CHAIN DOUBLE DRIVE    /SINGLE CHAIN SINGLE DRIVE
GRADIENT(°)2525
